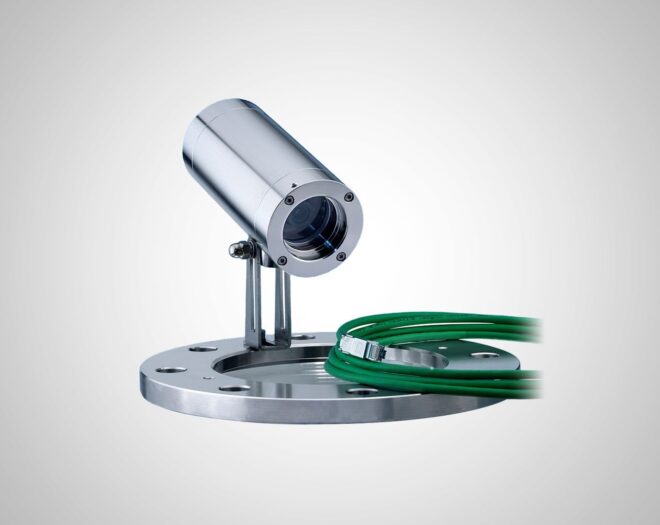

VISULEX Ex-Cameras K55-HD and K55-4K

Back to All

Applications

The new HD camera concept for explosive
industrial areas was developed especially for
industrial image processing.
• Very high picture quality
• The recorded images can be displayed
perfectly on 4K UHD monitors in continuous
operation (24/7)
• It is characterised by its simple adaptation
to existing network environments

Description

Ex II 2G Ex db IIC T6 Gb
Ex II 2G Ex tb IIIC T80°C Db
Camera with fixed lens K55-HD-Ex/K55-4K-Ex
Application temperature range: 0°C to 40°C
Lenses with focal length: 8 mm (39°); 6 mm (54°); 5,4 mm (60°) Minimum distance lens to object: 0.3 m
Electrical connection: via the network cable (POE)
Image resolution max. 1920 x 1080 p/30 fps or 3840 x 2160 p
Control line: Network cable cat. 7 Flex, max. 60 m, 4x2xAWG 26
