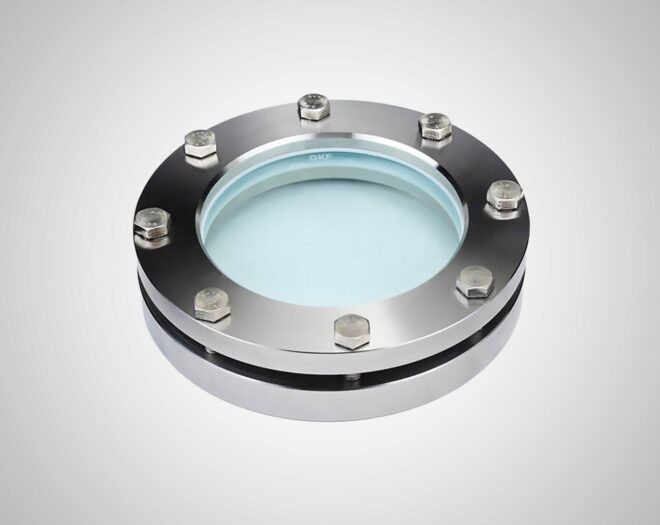

Visilume Low Pressure Sight Glass – Weld-On

Description

Visilume low pressure sight glasses are similar to the DIN28-120 series and are suitable for welding into or onto vessel walls. The reduced dimensions provide a cost effective alternative for low pressure applications. Suitable for observing the internals of tanks, pressure vessels, silos, gear-trains, separators and pipelines etc.

• Circular pad flange for welding into or onto vessel wall
• Cost effective alternative to the DIN28120 for lower pressure applications
• Complete with gaskets, glass disc and hexagon head screws
• Viewing diameter from 50 to 600mm
• Operating temperature up to 280°C, up to 900°C possible
• Operating pressure up to 5 bar
• Materials: Stainless, Carbon steel and speciality steels such as Hastelloy
• Custom built versions
• Wiper options available
