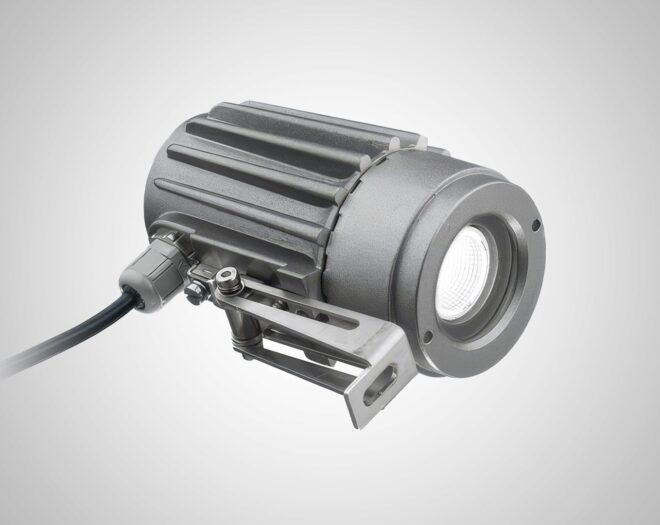

USL05 LED Ex
Applications
For illuminating the interior of tanks, hoppers, silos, agitators and other - normally closed - vessels and reactors as well as visual flow indicators in potentially explosive environments. Gas: Zones 1 and 2, Dust: Zones 21 and 22.
Suitable for use in food processing industries.
Description
ex II 2G Ex d IIC T3/T4/T6/120°C Gb
ex II 2D Ex tb IIIC T80/T120/T130/T195°C Db
Suitable for Explosion hazardous areas: Temperature Class: to T6 (depending on power rating)
Ambient temperature: up to 60°C
Suits Lumiglas Sight Glass Fitting, circular DIN 28120/28121 or similar from size DN 40 and Lumiglas Screwed Sight Glass Fitting MV from DN 65
Operating voltage: 12V, 24V, 120V, 230V
Power, depending on voltage: up to 20W
Secured by hinged bracket or adapter flange
Product datasheet
