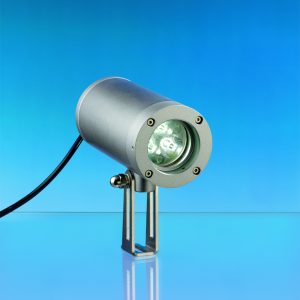

ESL55 LED Ex

ESL55 LED Ex

Category:

Applications

For illuminating visual flow indicators, pipelines, laboratory mixers, bio-reactors as well as the interior of tanks, hoppers, silos, agitators and other, normally closed, vessels and reactors in potentially explosive environments. Gas: Zones 1 and 2, Dust: Zones 21 and 22.

Technical Data...

Contact our Technical Team on +44 (0) 1457 865700 for more information

Description

ex II 2G Ex d IIC T6 Gb
ex II 2D Ex tb IIIC T80° Db
Suitable for Explosion hazardous areas

Temperature Class: to T6
Ambient temperature: up to 40°C
Suits circular sight glass fittings to DIN 28120/28121 or similar from size DN 40 and screwed sight glass fittings DIN 11851 from DN 65

Operating Voltage 24V, 120V-230V Power 11 W
Secured by hinged bracket or adapter flange
modyfied by an inside mounting flange specially for Aseptik Technology
