USL03 LED

Back to All

Applications

It is ideal for illuminating bioreactors, laboratory mixers and filters as well as the interiors of tanks, agitators, separators,
pipelines and other, usually closed, vessels in non-explosive operating environments.

Description

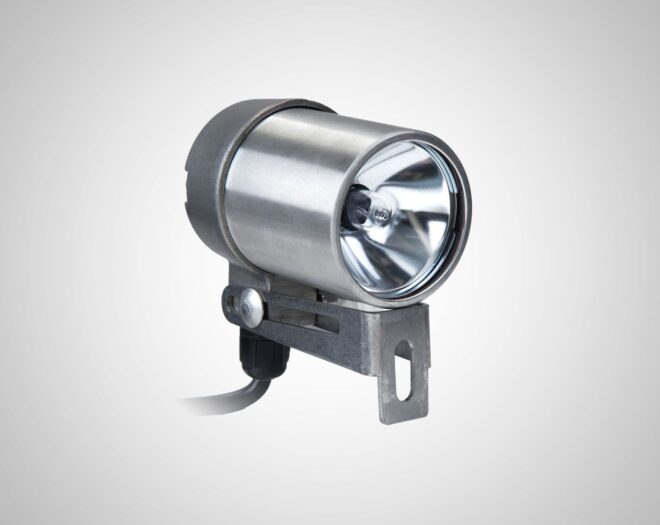

The space-saving sightglass luminaire in compact design.

Stainless steel body
Compact design, powerful light output
It is ideal for use in combined sight and light ports (single-flange version) or with two separate ports (2-flange version)
For illuminating the interior of tanks, hoppers, silos, agitators and other, usually closed, vessels and reactors as well as visual flow indicators in non-explosive environments. Recommended for use in the food processing industry.
Protection class: dust- and waterjet-proof, IP 65 acc. to EN 60 529 / DIN VDE 0470, Part 1
Max. admissible ambient temperature: 50°C (max. 70°C are possible in touch operation)
