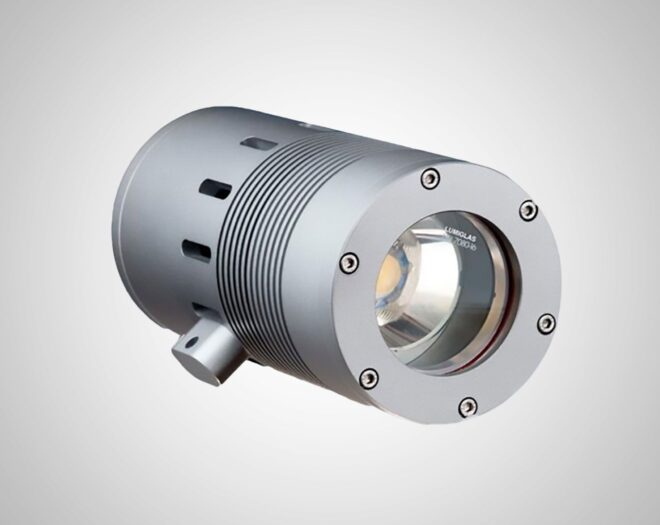

ASL57 LED Ex
Applications
For illuminating visual flow indicators, pipelines, laboratory mixers, bio-reactors as well as the interior of tanks,
hoppers, silos, agitators and other, normally closed, vessels and reactors in potentially explosive environments.
Description
ex II 2G Ex d(e) IIC T6 Gb
ex II 2D Ex tb IIIC T80°C Db
Suitable for Explosion hazardous areas
Temperature Class: to T6
Ambient temperature: up to 40°C
High operating time by Hi-Power LED’s
Suits circular sight glass fittings to DIN 28120/28121 or similar from size DN 40 and screwed sight glass fittings DIN 11851 from DN 65
Operating Voltage 24V, 120V-230V
Power 11 W
Secured by hinged bracket or adapter flange
