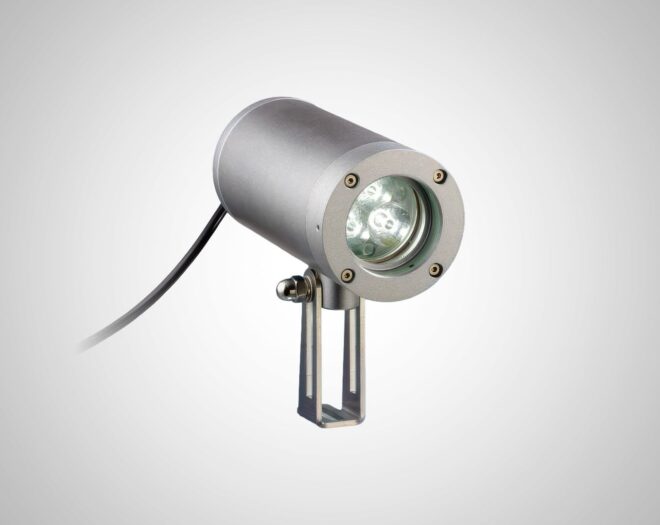

ASL55 LED Ex

Back to All

Applications

Glare-free illumination; suitable for circular sight glass fittings to DIN 28120/DIN 28121 or similar, for screw-type sight glass fittings
in compliance with DIN 11851 and for sight glass fittings on flow indicators.

Description

ex II 2G Ex d IIC T6 Gb
ex II 2D Ex tb IIIC T80°C Db
Suitable for Explosion hazardous areas

Temperature Class: to T6
Ambient temperature: up to 40°C
High operating time by Hi-Power LED’s

Suits circular sight glass fittings to DIN 28120/28121 or similar from size DN 40 and screwed sight glass fittings DIN 11851 from DN 65
Operating Voltage 24V, 120V-230V
Power 11 W
Secured by hinged bracket or adapter flange
